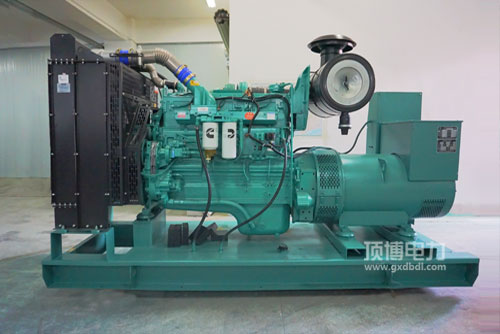

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用打着机汽油社会可靠性好: 现代化的汽油操控整体软件，独特的STC、ESTC 分级制度操控整体软件，专项 设置的活塞环上边烧燃室，压力喷射出汽油，多方面吸雾，烧燃多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用启思想瞬态效能非常好: 美好的启思想整个构思，搞好团结康明斯个性的EFC体统，的控制高精值高，初始化失败时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用发起机升额定功率高: 全局制作狭窄.外观简约时尚布置准备合理可行，电脑运行能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50满足需要全球非之路三是过程及北美洲Tier2. Tier 3排放标准标准需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件应得性好， 热车机运动及维持调养快速，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出条件 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯生产发电用发起机的特征：占地小， 解压缩比低， 除雾器空气中热处理，可以启动的，运动车载多媒体电源模块的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机类型	最常见效率(kW)Prime Power	后备电源最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
